Overview

Virtual Serial Port Kit creates virtual serial ports and connects each pair of them via a virtual null-modem cable. So, all the data written to one virtual serial port can be immediately read from the other one, and vice versa.

Moreover, this functionality can be easily integrated into your software.

Common Solution

There are two applications which are exchanging data via serial ports. These programs should be connected and a null-modem cable is used for it.

There are several problems you can come across:

There are no two serial ports on your PC.
All serial ports are already occupied.
It is necessary to connect several pairs of programs simultaneously and one null-modem cable is not enough.

FabulaTech Solution

Using Virtual Serial Port Kit you can emulate unlimited number of serial ports and connect each pair of them via a virtual null-modem cable.

So, your applications can exchange data just like they do via hardware serial ports and real null-modem cables.

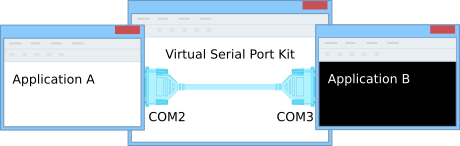

For example, using VSPK, you can create pair of virtual serial ports (e.g. COM7 and COM8) and connect two applications to them. All data that the first application writes to COM7 is read from COM8 by the second application, and vice versa.

Example

It is easy to test. You can run two copies of terminal program (e.g. standard Windows HyperTerminal) and connect them to COM7 and COM8.

So, all you type in the first HyperTerminal will appear in the second and vice versa. You can also transfer files between HyperTerminals and do whatever you want.

FabulaTech Solution Benefits

The applications recognize virtual serial ports created by VSPK as the usual hardware serial ports.
There is no need to waste money on different null-modem cables, because VSPK emulates all types of null-modem schemes.
Your hardware serial ports are not occupied. So they can be used for any other purposes.
These are no cables hanging on the backside of your PC because all data transmission is being done inside.

OEM License Benefits

Virtual Serial Port Kit functionality can be easily integrated into your application. So you can create and configure virtual serial ports from your application directly.

Target Groups

Virtual Serial Port Kit is useful for serial software developers.

It allows to speed up development process during debugging and data-logging period. You can debug your program (which uses serial port) by connecting it to another program (e.g. serial device emulator).

You can connect ActiveSync directly to Pocket PC emulator using Virtual Serial Port Kit.

Features

General
Allows to create virtual serial ports connected via a virtual null-modem cable
Allows to create virtual serial loopback plugs
Full hardware serial ports emulation

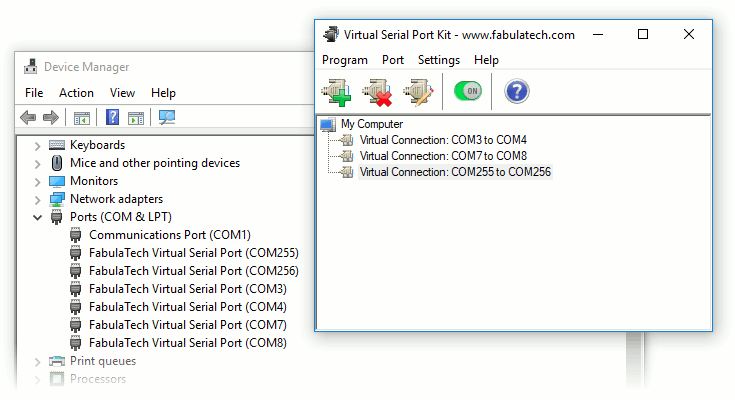

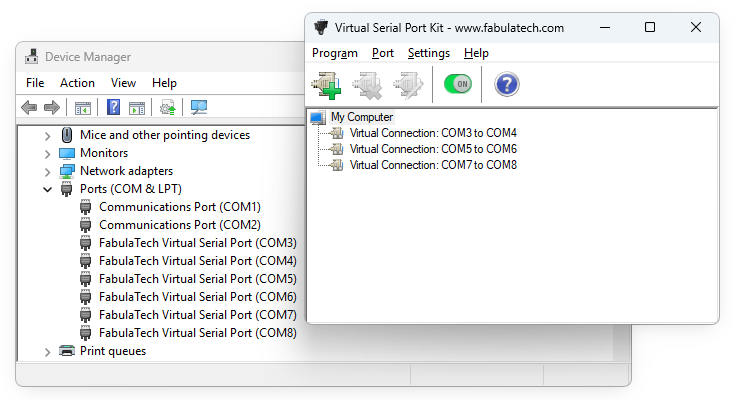

Virtual serial ports look and work like real hardware ports
Serial data bitrate (transmission speed) emulation

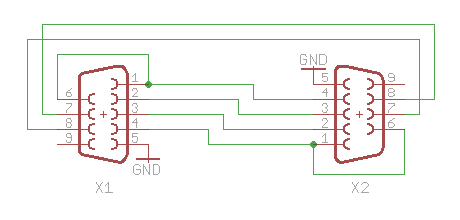

Different virtual null-modem schemes are available (full, partial, loopback)
Unlimited number of virtual COM port pairs can be created
Once created virtual ports are operable at each system startup (prior to user login)
Overlapped virtual COM ports support (virtual serial ports can have the same names as existing physical COM ports)
Real null-modem cables are not required
Real serial ports are not occupied
Virtual communication is more fast and reliable than via a real null-modem cable
Compatibility
64bit and 32bit compatible
Full Microsoft serial.sys compatibility
PnP and WMI technologies compatibility
Hyper-Threading Technology compatibility
VMware compatibility
User Interface and API

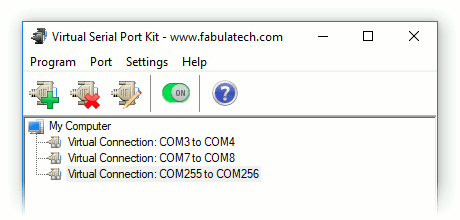

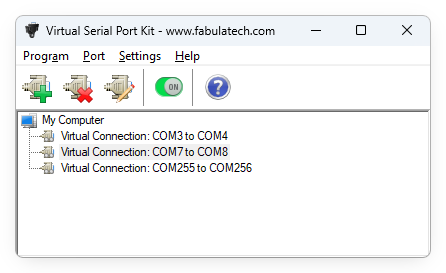

User-friendly program interface
Hot Virtual COM port creation and removal, without rebooting your computer
One click enable/disable button for all virtual serial ports
Virtual serial ports are controlled directly from your own application using command-line
Virtual serial ports are controlled directly from your own application using ActiveX or Dynamic Link Library (OEM license)
